Name :

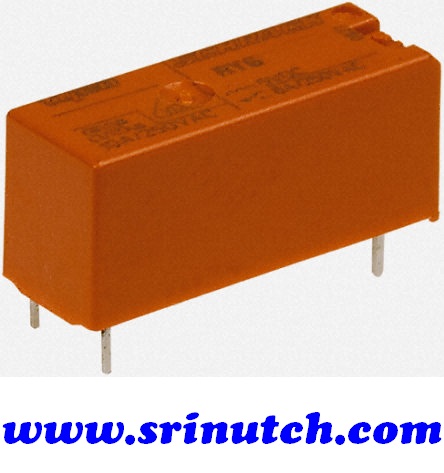

RY212005 ชแร็ค รีเลย์ Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- รีเลย์
Brand :
ชแร็ค Model :
RY212005Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
BranD : SchracK
BranD : TycO ElectronicS
BranD : TE ConnectivitY
Type : RY212005
Part No.: 5-1393224-2
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk www.srinutch.com
Email.: pilz@hotmail.co.th srinutch@gmail.com
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)
Product Detail :
Industrial Relays (General Purpose)
RY212005
RY212005
TE Internal Number: 5-1393224-2
Product Highlights View All
-
RYII Series
-
Contact - Current Class = 5A to 10A Class, Less Than 16A
-
Contact - Rated Current = 8 A
-
Terminal Type = PCB-THT
-
Contact - Arrangement = 1 Form C (CO)
Electrical Characteristics
| Contact - Current Class | 5A to 10A Class, Less Than 16A |
| Contact - Rated Current (A) | 8 |
| Contact - Limiting Continuous Current (A) | 8 |
| Contact - Limiting Making Current (A) | 8 |
| Contact - Limiting Breaking Current (A) | 8 |
| Insulation - Initial Dielectric Between Coil/Contact Class | >4000V Class |
| Insulation - Initial Dielectric Between Open Contacts (V rms) | 1000 |
| Insulation - Initial Dielectric Between Contacts and Coil (V rms) | 5000 |
| Contact - Rated Voltage (VAC) | 250 |
| Contact - Switching Voltage Max. (VAC) | 400 |
| Contact - Limiting Short-Time Current (A) | 8 |
| Coil - Rated Voltage (VDC) | 5 |
| Coil - Resistance (Ω) | 112 |
| Coil - Rated Power, DC (mW) | 223 |
| Coil - Rated Power Class | 200mW to 300mW Class |
| Insulation - Creepage Class | 5.5mm to 8mm Class |
| Insulation - Clearance Class | 5mm to 8mm Class |
| Insulation - Special Features | Tracking Index of Relay Base PTI250 |
Dimensions
| Mechanical - Length Class | 25mm to 30mm Class |
| Length (mm [in]) | 28.50 [1.122] |
| Mechanical - Width Class | 10mm to 12mm Class |
| Width (mm [in]) | 10.11 [0.398] |
| Mechanical - Height Class | 12mm to 13mm Class |
| Height (mm [in]) | 12.30 [0.484] |
| Insulation - Clearance Between Contact and Coil (mm [in]) | 8 [0.315] |
| Insulation - Creepage Between Contact and Coil (mm [in]) | 8 [0.315] |
Body Features
| Mount Type | PCB |
| Weight (g [oz]) | 8.00 [0.282] |
Contact Features
| Terminal Type | PCB-THT |
| Contact Material | AgNi0.15, gold plated |
| Contact - Number of Poles | 1 |
Configuration Features
| Contact - Arrangement | 1 Form C (CO) |
| Coil - Magnetic System | Monostable, DC |
Industry Standards
| RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C |
| RoHS/ELV Compliance History | Converted to comply with RoHS directive |
| Approved/Registered Standards | cULus, VDE |
Environmental
| Environmental - Category of Protection | RTII |
| Environmental - Ambient Temperature, Max. (°C [°F]) | 70 [158] |
| Environmental - Ambient Temperature Class | 50°C to 70°C Class |
Packaging Features
| Packaging Method | Tube |
Other
| Series | RYII |
| Brand | Schrack |
