E-Catalog > อุปกรณ์ไฟฟ้า > 750330 เซฟตี้ รีเลย์ PNOZ S30

PAGE VIEW : 9,871

Product Information :

Name :
750330 เซฟตี้ รีเลย์ PNOZ S30
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. อุปกรณ์ไฟฟ้า
Brand :
พิลซ์
Model :
750330 PNOZ S30 24-240VACDC 2n/o 2n/c
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ Type : PNOZ S30 24-240VACDC 2n/o 2n/c Part No.: 750330 Supplier : Srinutch Components Co.,Ltd. Website : www.pilz.tk Email.: pilz@hotmail.co.th Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)

Product Detail :

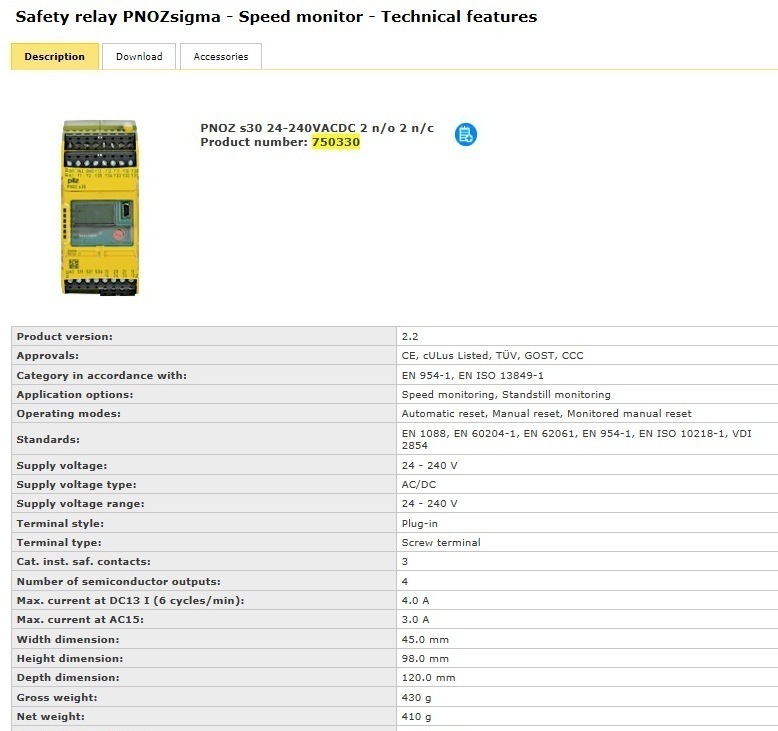

Safety relay PNOZsigma - Speed monitor - Technical features


PNOZ s30 24-240VACDC 2 n/o 2 n/c
PNOZ s30 24-240VACDC 2 n/o 2 n/c
Product number:
750330
Add to Favorites
Product version: 2.2
Approvals: CE, cULus Listed, TÜV, GOST, CCC
Category in accordance with: EN 954-1, EN ISO 13849-1
Application options: Speed monitoring, Standstill monitoring
Operating modes: Automatic reset, Manual reset, Monitored manual reset
Standards: EN 1088, EN 60204-1, EN 62061, EN 954-1, EN ISO 10218-1, VDI 2854
Supply voltage: 24 - 240 V
Supply voltage type: AC/DC
Supply voltage range: 24 - 240 V
Terminal style: Plug-in
Terminal type: Screw terminal
Cat. inst. saf. contacts: 3
Number of semiconductor outputs: 4
Max. current at DC13 I (6 cycles/min): 4.0 A
Max. current at AC15: 3.0 A
Width dimension: 45.0 mm
Height dimension: 98.0 mm
Depth dimension: 120.0 mm
Gross weight: 430 g
Net weight: 410 g
Ambient temperature: -20 - 55 °C
