Product Information :

Name :
774790 PNOZ V เซฟตี้ รีเลย์ PilZ @ SRINUTCH
Category :
  1. การวัดและทดสอบ, เครื่องมือวัดและทดสอบ
Sub - Category :
  1. เครื่องมือวัด ทดสอบ และควบคุม
Brand :
พิ้ลซ์
Model :
774790 PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t PilZ @ SRINUTCH
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ Safety Relays Type : PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t Part No.: 774790 Supplier : Srinutch Components Co.,Ltd. Website : www.pilz.tk Email.: pilz@hotmail.co.th Spec. คลิกที่เอกสารแนบ + ไฟล์เอกสาร (ด้านล่างค่ะ)

Product Detail :

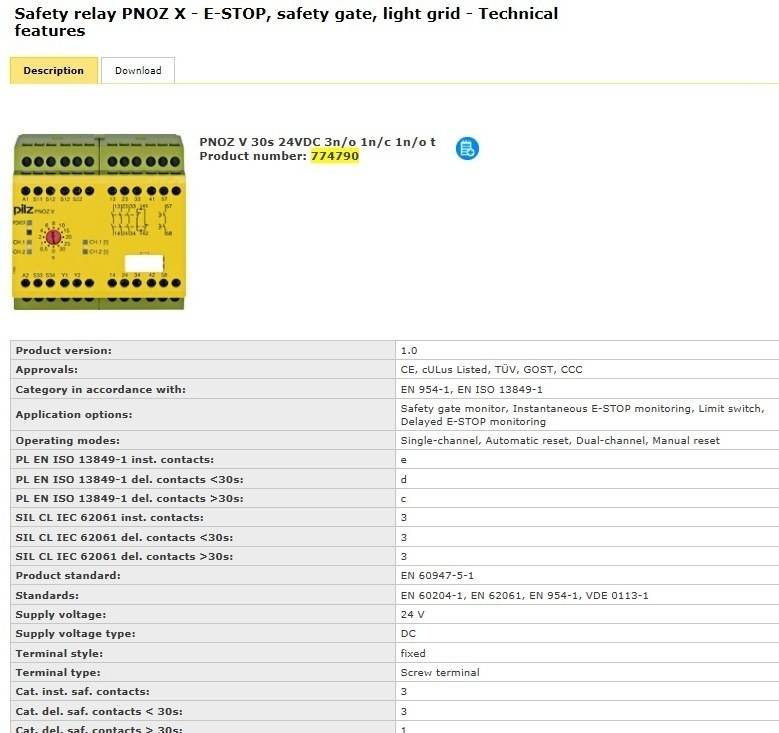

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features


PNOZ V 30s 24VDC  3n/o 1n/c 1n/o t
PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t
Product number:
774790
Add to Favorites
Product version: 1.0
Approvals: CE, cULus Listed, TÜV, GOST, CCC
Category in accordance with: EN 954-1, EN ISO 13849-1
Application options: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring
Operating modes: Single-channel, Automatic reset, Dual-channel, Manual reset
PL EN ISO 13849-1 inst. contacts: e
PL EN ISO 13849-1 del. contacts <30s: d
PL EN ISO 13849-1 del. contacts >30s: c
SIL CL IEC 62061 inst. contacts: 3
SIL CL IEC 62061 del. contacts <30s: 3
SIL CL IEC 62061 del. contacts >30s: 3
Product standard: EN 60947-5-1
Standards: EN 60204-1, EN 62061, EN 954-1, VDE 0113-1
Supply voltage: 24 V
Supply voltage type: DC
Terminal style: fixed
Terminal type: Screw terminal
Cat. inst. saf. contacts: 3
Cat. del. saf. contacts < 30s: 3
Cat. del. saf. contacts > 30s: 1
Number of instantaneous safety contacts: 3
Number of delayed safety contacts: 1
Safety contact delay type: Delay-on de-energisation
Number of auxiliary contacts: 1
Selectable times: 0,00 s, 0,50 s, 1,00 s, 10,00 s, 15,00 s, 2,00 s, 20,00 s, 25,00 s, 30,00 s, 4,00 s, 6,00 s, 8,00 s
Stop category: 0/1
Max. current at DC13 I (6 cycles/min): 7.0 A
Max. current at AC15: 5.0 A
Width dimension: 90.0 mm
Height dimension: 87.0 mm
Depth dimension: 121.0 mm
Gross weight: 540 g
Net weight: 480 g
Ambient temperature: -10 - 55 °C
