Product Information :

Name :
774322 PNOZ X3.1 เซฟตี้รีเลย์ PilZ @ SRINUTCH ThailanD
Category :
  1. การบริการต่าง ๆ, การซ่อมบำรุง
Sub - Category :
  1. Civil Work
Brand :
พิ้ลซ์
Model :
774322 PNOZ X3.1 PilZ @ SRINUTCH ThailanD
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ Safety Relays Type : PNOZ X3.1 240VAC 24VDC 3n/o 1n/o 1so Part No.: 774322 Supplier : Srinutch Components Co.,Ltd. Website : www.pilz.tk Email.: pilz@hotmail.co.th Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)

Product Detail :

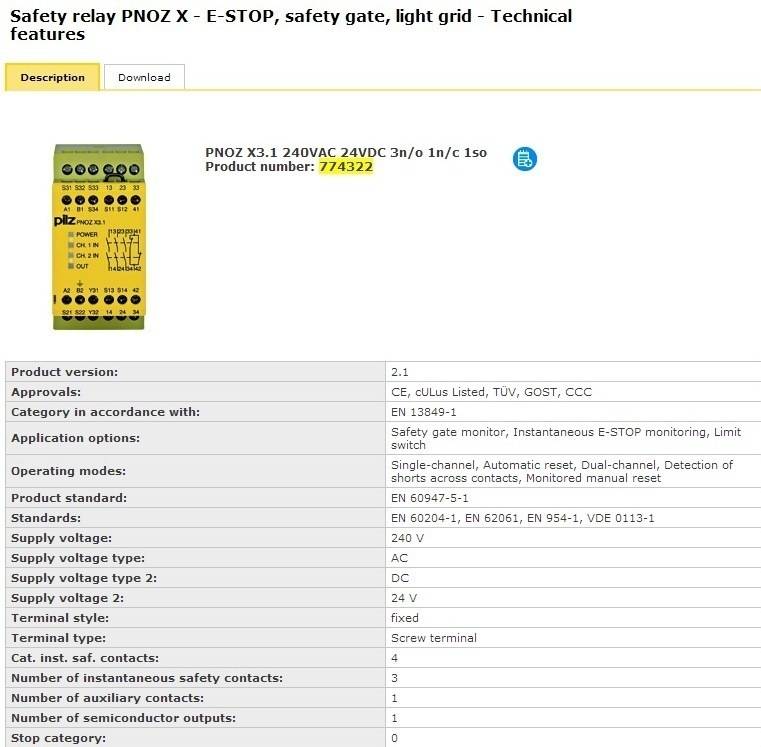

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features



PNOZ X3.1 240VAC 24VDC 3n/o 1n/c 1so
PNOZ X3.1 240VAC 24VDC 3n/o 1n/c 1so
Product number:
774322
Add to Favorites
Product version: 2.1
Approvals: CE, cULus Listed, TÜV, GOST, CCC
Category in accordance with: EN 13849-1
Application options: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
Operating modes: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset
Product standard: EN 60947-5-1
Standards: EN 60204-1, EN 62061, EN 954-1, VDE 0113-1
Supply voltage: 240 V
Supply voltage type: AC
Supply voltage type 2: DC
Supply voltage 2: 24 V
Terminal style: fixed
Terminal type: Screw terminal
Cat. inst. saf. contacts: 4
Number of instantaneous safety contacts: 3
Number of auxiliary contacts: 1
Number of semiconductor outputs: 1
Stop category: 0
Max. current at DC13 I (6 cycles/min): 6.0 A
Max. current at AC15: 5.0 A
Width dimension: 45.0 mm
Height dimension: 87.0 mm
Depth dimension: 121.0 mm
Gross weight: 405 g
Net weight: 375 g
Ambient temperature: -20 - 55 °C
