Name :
PT270024 รีเลย์ ชแร็ค Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- รีเลย์ไฟฟ้า
Brand :
ชแร็ค Model :
PT270024Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
BranD : Schrack
Type : PT270024
Part No.: 4-1419111-2
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk www.srinutch.com
Email.: pilz@hotmail.co.th srinutch@gmail.com
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)
![](images/badge_new.gif)
Product Detail :

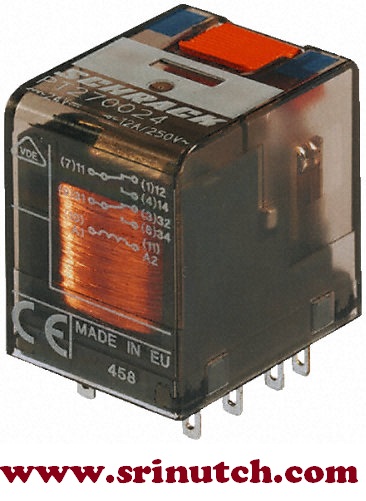

![](../uploadedimages/c1/Product_34876_501808664_fullsize.jpg)
Industrial Relays (General Purpose)
PT270024
PT270024
TE Internal Number: 4-1419111-2
Product Highlights View All
-
PT Series
-
Contact - Current Class = 10A to 20A Class, Less Than 16A
-
Contact - Rated Current = 12 A
-
Terminal Type = Plug-in, Quick Connect
-
Contact - Arrangement = 2 Form C (CO)
Electrical CharacteristicsContact - Current Class 10A to 20A Class, Less Than 16A Contact - Rated Current (A) 12 Contact - Limiting Continuous Current (A) 12 Contact - Limiting Making Current (A) 24 Contact - Limiting Breaking Current (A) 12 Insulation - Initial Dielectric Between Coil/Contact Class 1500V to 2500VA Class Insulation - Initial Dielectric Between Open Contacts (V rms) 1200 Insulation - Initial Dielectric Between Contacts and Coil (V rms) 2500 Contact - Rated Voltage (VAC) 240 Contact - Switching Voltage Max. (VAC) 400 Contact - Limiting Short-Time Current (A) 300 Contact - Switching Recommended Load, Min. 10mA at 12V Coil - Rated Voltage (VDC) 24 Coil - Resistance (Ω) 777 Coil - Rated Power, DC (mW) 741 Coil - Rated Power Class 600mW to 800mW Class Insulation - Initial Dielectric Between Adjacent Contacts (V rms) 2500 Insulation - Creepage Class 3mm to 5.5mm Class Insulation - Clearance Class 2.5mm to 4mm Class Insulation - Special Features 5000V Initial Surge Withstand Voltage between Contacts and Coil DimensionsMechanical - Length Class 25mm to 30mm Class Length (mm [in]) 28.00 [1.102] Mechanical - Width Class 20mm to 25mm Class Width (mm [in]) 22.50 [0.886] Mechanical - Height Class 25mm to 30mm Class Height (mm [in]) 29.00 [1.142] Insulation - Clearance Between Contact and Coil (mm [in]) 4 [0.157] Insulation - Creepage Between Contact and Coil (mm [in]) 4 [0.157] Body FeaturesMount Type Socket Weight (g [oz]) 30.00 [1.058] Contact FeaturesTerminal Type Plug-in, Quick Connect Contact Material AgNi90/10 Contact - Number of Poles 2 Configuration FeaturesContact - Arrangement 2 Form C (CO) Coil - Magnetic System Monostable, DC Industry StandardsRoHS/ELV Compliance RoHS compliant, ELV compliant Lead Free Solder Processes Hand solderable with lead free solder RoHS/ELV Compliance History Always was RoHS compliant Approved/Registered Standards LLOYDs, cULus, VDE EnvironmentalEnvironmental - Category of Protection RTII Environmental - Ambient Temperature, Max. (°C [°F]) 70 [158] Environmental - Ambient Temperature Class 50°C to 70°C Class Packaging FeaturesPackaging Method Tube OtherSeries PT Brand Schrack Accessories/Socket Type PCB Socket, DIN-rail Socket Additional Features Mechanical Indicator, Manual Operation
