Product Information :
Name :
774605 เซฟตี้ รีเลย์ พิลซ์ Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- อุปกรณ์ไฟฟ้า
Brand :
พิลซ์ Model :
774605 PNOZ X9 100-120VAC 24VDC 7n/o 2n/c 2soProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Type : PNOZ X9 100-120VAC 7n/o 2n/c 2so
Part No.: 774605
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk
Email.: pilz@hotmail.co.th
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)
Product Detail :

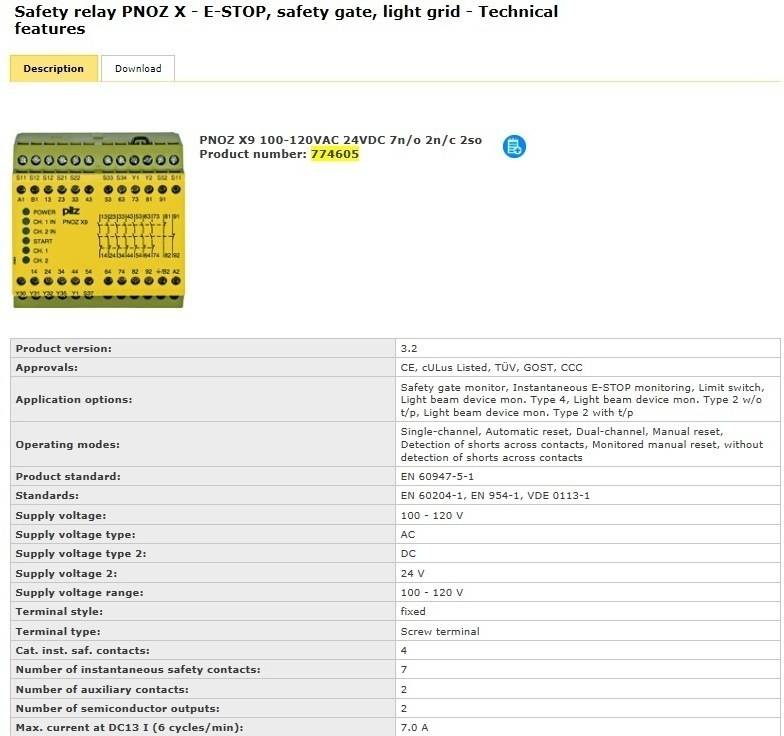

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features
| Description | Download |
| PNOZ X9 100-120VAC 24VDC 7n/o 2n/c 2so Product number: 774605
|
 |
||
| Product version: | 3.2 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p |
| Operating modes: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 954-1, VDE 0113-1 |
| Supply voltage: | 100 - 120 V |
| Supply voltage type: | AC |
| Supply voltage type 2: | DC |
| Supply voltage 2: | 24 V |
| Supply voltage range: | 100 - 120 V |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Cat. inst. saf. contacts: | 4 |
| Number of instantaneous safety contacts: | 7 |
| Number of auxiliary contacts: | 2 |
| Number of semiconductor outputs: | 2 |
| Max. current at DC13 I (6 cycles/min): | 7.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 90.0 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 920 g |
| Net weight: | 870 g |
| Ambient temperature: | -10 - 55 °C |
