Product Information :
Name :
777438 P2HZ X1P 230VAC 3n/o 1n/c 2so PilZ @ SRINUTCH Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- รีเลย์ไฟฟ้า
Brand :
PilZ Model :
777438 P2HZ X1P 230VAC 3n/o 1n/c 2so PilZ @ SRINUTCHProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Two Hand Relays
Type : P2HZ X1P 230VAC 3n/o 1n/c 2so
Part No.: 777438
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk www.pilz.co.cc
Email.: pilz@hotmail.co.th
Spec. คลิกที่เอกสารแนบ + ไฟล์เอกสาร (ด้านล่างค่ะ) Product Detail :

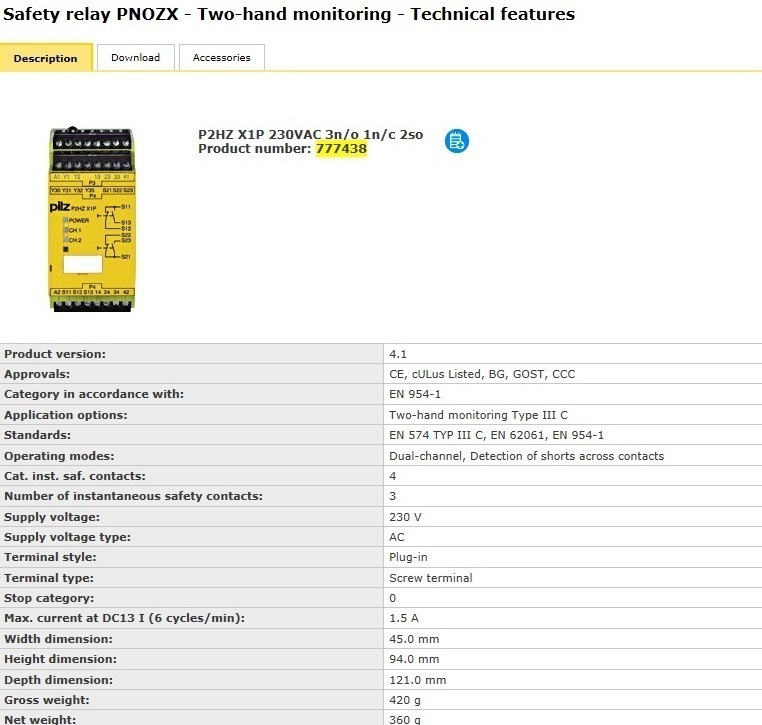

Safety relay PNOZX - Two-hand monitoring - Technical features
| Description | Download | Accessories |
| Optional accessories | ||||
 |
374281 | PNOZ X Set plug in screw terminals P3+P4 |  |
|
| P2HZ X1P 230VAC 3n/o 1n/c 2so Product number: 777438
|
|
||
| Product version: | 4.1 |
| Approvals: | CE, cULus Listed, BG, GOST, CCC |
| Category in accordance with: | EN 954-1 |
| Application options: | Two-hand monitoring Type III C |
| Standards: | EN 574 TYP III C, EN 62061, EN 954-1 |
| Operating modes: | Dual-channel, Detection of shorts across contacts |
| Cat. inst. saf. contacts: | 4 |
| Number of instantaneous safety contacts: | 3 |
| Supply voltage: | 230 V |
| Supply voltage type: | AC |
| Terminal style: | Plug-in |
| Terminal type: | Screw terminal |
| Stop category: | 0 |
| Max. current at DC13 I (6 cycles/min): | 1.5 A |
| Width dimension: | 45.0 mm |
| Height dimension: | 94.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 420 g |
| Net weight: | 360 g |
| Ambient temperature: | -25 - 55 °C |
