E-Catalog > Maintenance > 774300 PNOZ X1 เซฟตี้รีเลย์ PilZ @ SRINUTCH ThailanD
PAGE VIEW : 17,637
Product Information :
Name :
774300 PNOZ X1 เซฟตี้รีเลย์ PilZ @ SRINUTCH ThailanD Category :
- การบริการต่าง ๆ, การซ่อมบำรุง
Sub - Category :
- Maintenance
Brand :
พิ้ลซ์ Model :
774300 PNOZ X1 PilZ @ SRINUTCH ThailanDProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Safety Relays
Type : PNOZ X1 24VAC/DC 3n/o 1n/c
Part No.: 774300
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk
Email.: pilz@hotmail.co.th
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ) Product Detail :

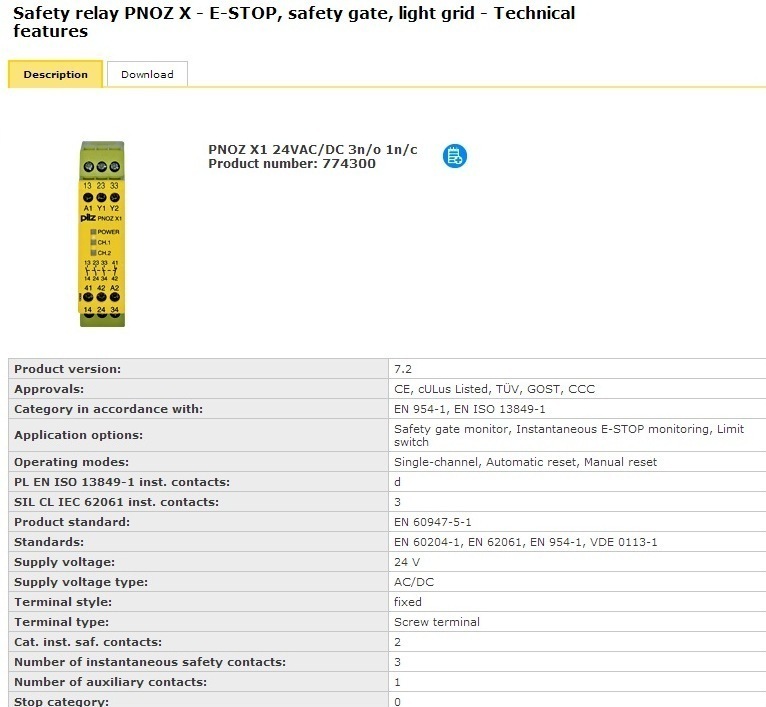

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features
| Description | Download |
| PNOZ X1 24VAC/DC 3n/o 1n/c Product number: 774300 |
 |
||
| Product version: | 7.2 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC |
| Category in accordance with: | EN 954-1, EN ISO 13849-1 |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch |
| Operating modes: | Single-channel, Automatic reset, Manual reset |
| PL EN ISO 13849-1 inst. contacts: | d |
| SIL CL IEC 62061 inst. contacts: | 3 |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Supply voltage: | 24 V |
| Supply voltage type: | AC/DC |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Cat. inst. saf. contacts: | 2 |
| Number of instantaneous safety contacts: | 3 |
| Number of auxiliary contacts: | 1 |
| Stop category: | 0 |
| Max. current at DC13 I (6 cycles/min): | 5.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 22.5 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 199 g |
| Net weight: | 175 g |
| Ambient temperature: | -10 - 55 °C |
