E-Catalog > อุปกรณ์ไฟฟ้า > SR6ZB024 V23050A1024A542 เซฟตี้รีเลย์ 4n/o 2n/c
PAGE VIEW : 4,479
Product Information :
Name :

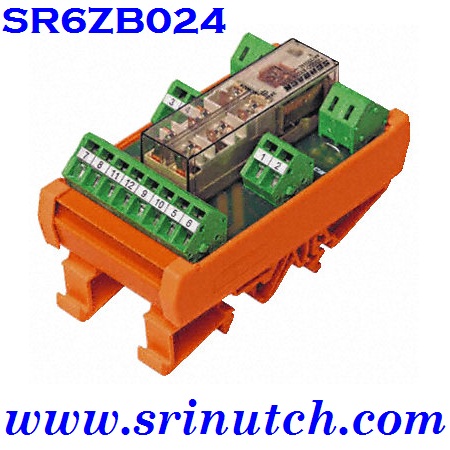

SR6ZB024 V23050A1024A542 เซฟตี้รีเลย์ 4n/o 2n/c Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- อุปกรณ์ไฟฟ้า
Brand :
ชแร็ค Model :
SR6ZB024 V23050-A1024-A542 SafetY RelaY 4n/o 2n/cProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
BranD : SCHRACK
BranD : TYCO ELECTRONICS
BranD : TE CONNECTIVITY
SafetY RelaY ModuleS
Type : SR6ZB024
Relay : V23050-A1024-A542
Relay : V23050A1024A542
Part No.: 5-1415033-1
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk www.srinutch.com
Email.: pilz@hotmail.co.th srinutch@gmail.com
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)
Product Detail :
Electrical Characteristics
| Contact - Rated Current (A) | 8 |
| Contact - Limiting Continuous Current (A) | 8 |
| Contact - Limiting Making Current (A) | 8 |
| Contact - Limiting Breaking Current (A) | 8 |
| Insulation - Initial Dielectric Between Open Contacts (V rms) | 1000 |
| Insulation - Initial Dielectric Between Contacts and Coil (V rms) | 3000 |
| Contact - Switching Voltage Max. (VAC) | 250 |
| Contact - Limiting Short-Time Current (A) | 8 |
| Coil - Rated Voltage (VDC) | 24 |
| Coil - Rated Power, DC (mW) | 1200 |
| Coil - Rated Power Class | 1W to 1.5W Class |
| Insulation - Initial Dielectric Between Adjacent Contacts (V rms) | 2000 |
| Insulation - Clearance Class | 5mm to 8mm Class |
| Insulation - Creepage Class | 3mm to 5.5mm Class |
Dimensions
| Length (mm [in]) | 87.00 [3.425] |
| Width (mm [in]) | 46.00 [1.810] |
| Height (mm [in]) | 54.00 [2.126] |
| Insulation - Clearance Between Contact and Coil (mm [in]) | 5.5 [0.217] |
| Insulation - Creepage Between Contact and Coil (mm [in]) | 5.5 [0.217] |
Body Features
| Mount Type | DIN Rail |
| Weight (g [oz]) | 90.00 [3.175] |
Contact Features
| Terminal Type | Screwless Clamp Connectors |
| Contact Material | AgSnO |
| Contact - Number of Poles | 6 |
| Contact - Special Features | Force Guided Contacts |
Configuration Features
| Contact - Arrangement | 4 Form A (NO) + 2 Form B (NC) |
| Coil - Magnetic System | Monostable, DC |
Industry Standards
| RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| RoHS/ELV Compliance History | Converted to comply with RoHS directive |
| Approved/Registered Standards | CE |
Environmental
| Environmental - Ambient Temperature, Max. (°C [°F]) | 50 [122] |
| Environmental - Ambient Temperature Class | 0 to 50°C Class |
Packaging Features
| Packaging Method | Box/Carton |
Other
| Series | SR6Z |
| Brand | Schrack |
