E-Catalog > อุปกรณ์ไฟฟ้า > 774303 เซฟตี้ รีเลย์ PNOZ X2 PilZ @ SRINUTCH ThailanD
PAGE VIEW : 18,413
Product Information :
Name :
774303 เซฟตี้ รีเลย์ PNOZ X2 PilZ @ SRINUTCH ThailanD Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- อุปกรณ์ไฟฟ้า
Brand :
พิลซ์ Model :
774303 PNOZ X2 PilZ @ SRINUTCH ThailanDProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Safety Relays
Type : PNOZ X2 24VAC/DC 2n/o
Part No.: 774303
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk
Email.: pilz@hotmail.co.th
Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ) Product Detail :

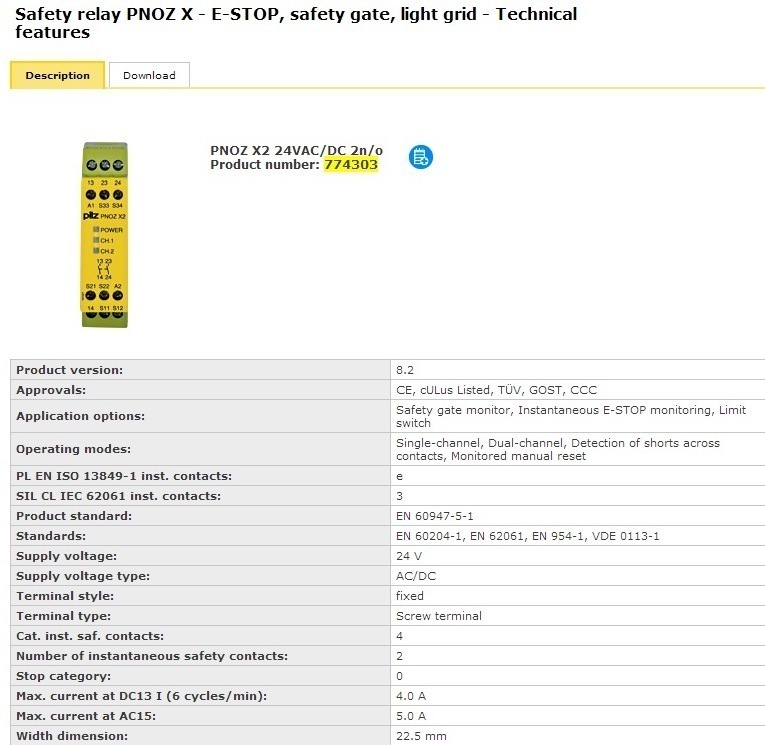

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features
| Description | Download |
| PNOZ X2 24VAC/DC 2n/o Product number: 774303
|
 |
||
| Product version: | 8.2 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch |
| Operating modes: | Single-channel, Dual-channel, Detection of shorts across contacts, Monitored manual reset |
| PL EN ISO 13849-1 inst. contacts: | e |
| SIL CL IEC 62061 inst. contacts: | 3 |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Supply voltage: | 24 V |
| Supply voltage type: | AC/DC |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Cat. inst. saf. contacts: | 4 |
| Number of instantaneous safety contacts: | 2 |
| Stop category: | 0 |
| Max. current at DC13 I (6 cycles/min): | 4.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 22.5 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 223 g |
| Net weight: | 192 g |
| Ambient temperature: | -10 - 55 °C |
