E-Catalog > เครื่องมือช่าง > 774009 PilZ PNOZ 10 24VDC @ SRINUTCH ThailanD

PAGE VIEW : 13,965

Product Information :

Name :
774009 PilZ PNOZ 10 24VDC @ SRINUTCH ThailanD
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. เครื่องมือช่าง
Brand :
พิลซ์
Model :
774009 PilZ PNOZ 10 24VDC @ SRINUTCH ThailanD
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ Type : PNOZ 10 24VDC 6n/o 4n/c Part No.: 774009 Supplier : Srinutch Components Co.,Ltd. Website : www.pilz.tk Email.: pilz@hotmail.co.th Spec. คลิกเอกสารแนบ + ไฟล์เอกสาร (ด้านล่างครับ)

Product Detail :

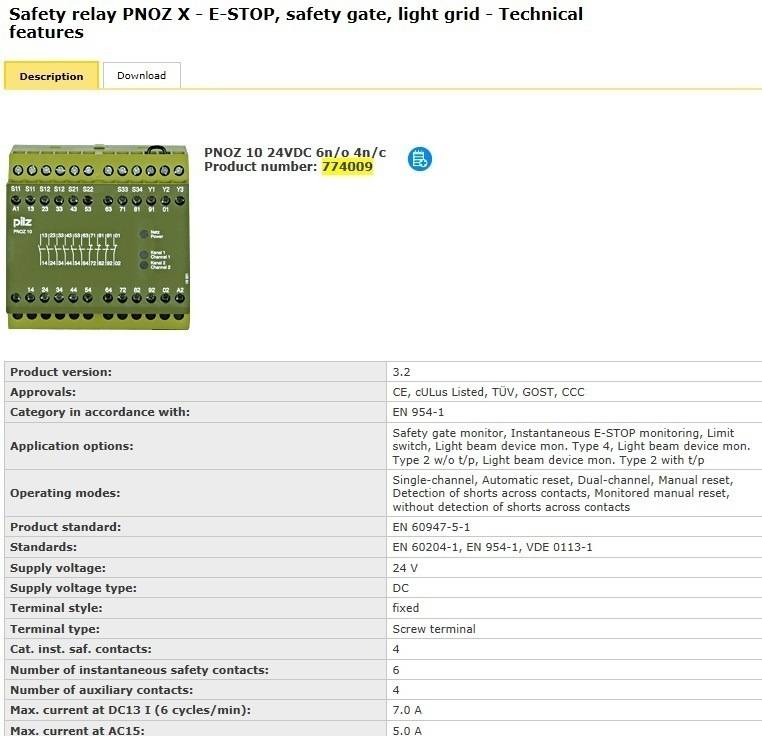

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features


PNOZ 10 24VDC 6n/o 4n/c
PNOZ 10 24VDC 6n/o 4n/c
Product number:
774009
Add to Favorites
Product version: 3.2
Approvals: CE, cULus Listed, TÜV, GOST, CCC
Category in accordance with: EN 954-1
Application options: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
Operating modes: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
Product standard: EN 60947-5-1
Standards: EN 60204-1, EN 954-1, VDE 0113-1
Supply voltage: 24 V
Supply voltage type: DC
Terminal style: fixed
Terminal type: Screw terminal
Cat. inst. saf. contacts: 4
Number of instantaneous safety contacts: 6
Number of auxiliary contacts: 4
Max. current at DC13 I (6 cycles/min): 7.0 A
Max. current at AC15: 5.0 A
Width dimension: 90.0 mm
Height dimension: 87.0 mm
Depth dimension: 121.0 mm
Gross weight: 600 g
Net weight: 540 g
Ambient temperature: -10 - 55 °C
